I-Pengcheng Outdoor’s 12㎡ Amatende Okusiza Ezimeni Eziphuthumayo ahlukaniswe ikakhulukazi ngezinhlobo ezimbili: 12㎡ Itende Losizo Oluphuthumayo Elilodwa (Izinga Likazwelonke/elingelona Elijwayelekile) kanye ne-12㎡ Itende Losizo Lwezimo Eziphuthumayo (Izinga Likazwelonke/elingelona Elijwayelekile). Ngobukhulu obungu-3.2m (ububanzi) × 3.7m (ubude) × 1.75m (ubude be-eave) × 2.67m (ukuphakama kwesiqongo), wonke amatende athatha indwangu engangeni manzi nengashisi yezinga eliphezulu enezakhiwo zensimbi eziqinisiwe, okwandisa ukuqina ngo-50%. Ifaka idizayini ye-modular, kulula ukuyinakekela futhi ihlanganiswe ngokushesha.
|
Usayizi |
Ububanzi 3.2m * Ubude 3.7 * Ubude obuseceleni 1.75m * Ubude obuphezulu 2.67m |
||||
|
Uhlobo |
Izinto ze-TARP kanye nokotini esinyeni |
Ukucushwa |
I-Stent |
Isisindo se ithende |
Isisindo sobakaki |
|
Izinga likazwelonke |
I-tarpaulin: 666dtex X 666dtex Intambo ye-PVC enohlangothi olulodwa ehlanganiswe ne-polyester Igallbladder kakotini: 400g kakotini kasilika omhlophe Indwangu engezansi: 555dtex×555dtex Intambo ye-polyester eboshwe kabili emaceleni |
Isicabha esisodwa esinamafasitela amane (600mm * 800mm) Ngaphambili nangemuva kunezimbobo zikashimula Ukuphrinta kuzo zombili izinhlangothi ze-canopy: I-Emergency Relief Kunyatheliswe emnyango: Usizo lwezinhlekelele |
Isigxobo esijwayelekile: 25mm * 1.2mm (izingcezu eziyi-18) Ikholomu: 25mm * 1.2mm (izingcezu ezingu-6) I-crossbar ephansi: 25mm * 1.2mm (izingcezu ezi-2) Izesekeli zezindlela ezintathu: φ28mm * 1.0mm (izingcezu eziyi-6) Izesekeli ezine: izingcezu ezi-3 ezinobubanzi obungu-28mm * 1.0mm Izesekeli eziphansi: izingcezu ezingu-6 ezinobubanzi obungu-28mm * 1.0mm Izipikili eziphansi: izingcezu eziyi-8 Ubakaki jikelele bamukela ubuchwepheshe bokufafaza ngopende |
Umzimba wetende: 36kg I-gallbladder kakotini: 28kg (± 0.5kg) |
44.5kg±0.5kg |
|
Okungajwayelekile |
I-PVC eluhlaza okwesibhakabhaka engu-600D Indwangu ye-Oxford embozwe nge-adhesive Igallbladder kakotini: 400g kakotini kasilika omhlophe Indwangu engezansi: Indwangu ye-PE |
(±0.5kg) Umzimba wetende: 28kg I-cotton gallbladder: 26kg (±0.5kg) |
38kg±0.5kg |
||
|
I-600D i-PVC evamile eluhlaza okwesibhakabhaka Indwangu ye-Oxford embozwe nge-adhesive I-cotton gallbladder: 300g kakotini kasilika omhlophe Indwangu engezansi: Indwangu ye-PE |
(±0.5kg) Isisindo: 25kg I-cotton gallbladder: 22kg (±0.5kg) |
38kg±0.5kg 30kg±0.5kg |
|||
|
I-600D i-PVC evamile eluhlaza okwesibhakabhaka Indwangu ye-Oxford embozwe nge-adhesive Ungqimba lukakotini: 240g kasilika kasilika omhlophe Indlela yekotini edidiyelwe |
Isicabha esisodwa esinamafasitela amane (600mm * 800mm) Umlomo kashimula wentaba yangaphambili Ukuphrinta kuzo zombili izinhlangothi ze-canopy: I-Emergency Relief Kunyatheliswe emnyango: Usizo lwezinhlekelele |
28kg±0.5kg |
30.5kg±0.5kg |
||
|
Izinga likazwelonke |
333dtex×333dtex intambo ye-polyester Indwangu ye-Oxford embozwe nge-adhesive Ungqimba lukakotini: 300g kasilika kasilika omhlophe Indwangu engezansi: Indwangu ye-PE |
Isicabha esisodwa esinamafasitela amane (600mm * 800mm) Ngaphambili nangemuva kunezimbobo zikashimula Ukuphrinta kuzo zombili izinhlangothi ze-canopy: I-Emergency Relief Kunyatheliswe emnyango: Usizo lwezinhlekelele Iphrintiwe eziqongweni zezintaba ezingaphambili nangemuva: eChina Phatha ifulegi lesizwe |
Isigxobo esijwayelekile: 25mm * 1.8mm (izingcezu eziyi-18) Ikholomu: 25mm * 1.8mm (6 izingcezu) Ama-crossbar aphansi: izingcezu ezi-2 ze-25mm * 1.8mm ububanzi Izesekeli zezindlela ezintathu: φ28mm * 1.0mm (izingcezu eziyi-6) Izesekeli ezine: izingcezu ezi-3 ezinobubanzi obungu-28mm * 1.0mm Izesekeli eziphansi: izingcezu ezingu-6 ezinobubanzi obungu-28mm * 1.0mm Izipikili eziphansi: izingcezu eziyi-8 I-aluminium alloy bracket |
Isisindo esiphelele: 60kg± 0.5kg |
|
|
Okungajwayelekile |
300D Blue PU Indwangu ye-Oxford embozwe nge-adhesive (Ayinqamuki ilangabi) Ungqimba lukakotini: 300g kasilika kasilika omhlophe Indwangu engezansi: Indwangu ye-PE |
||||
|
Okungenhla amapharamitha wetende likakotini elingu-12㎡ lokutakula izimo eziphuthumayo. Ubakaki, indwangu, kanye nomsebenzi kungenziwa ngokwezifiso ngokwezidingo zamakhasimende. |
|||||
Njengomkhiqizi wamatende osizo oluphuthumayo waseShayina, i-Pengcheng Outdoor’s 12㎡ Amatende Okusiza Ezimeni Eziphuthumayo amukela indwangu enamandla angangeni manzi futhi ekwazi ukumelana nelangabi enezakhiwo zensimbi eziqinisiwe, akhula ukuqina ngo-50% futhi akhuthazelele izinga lamagesi angu-8. Idizayini ye-modular inika amandla ukuhlangana okusheshayo nokugcinwa kalula. Ifakwe amafasitela okungenisa umoya kanye nezimpawu eziphuthumayo, ihlangabezana nezidingo zezimo eziningi ezifana nezikhungo zokuyala, iziteshi zezokwelapha, nezindawo zokukhosela eziphuthumayo.Imininingwane Yokukhiqiza1. Ukucaciswa Okubalulekile Nokusebenza Kwe-12㎡ Amatende Okusiza Ezinhlekeleleni Eziphuthumayo · Isikhala Nesakhiwo: Isakhiwo sodonga oluqondile oluwunxande oluphindwe kabili olunobukhulu obungu-3.7m (ubude) × 3.2m (ububanzi) × 2.67m (ubude obuphakeme) × 1.75m ukuphakama nendawo engasebenziseka kalula ihlalisa cishe abantu abayi-5 okwesikhashana. Uhlaka lunomklamo we-plug-in onezingqimba eziwela phansi ukuze uqinisekise ukuphepha emimoyeni enamandla.
Indwangu: Imvamisa indwangu engu-300D/600D embozwe nge-PVC noma izinto ezifanayo, ezibonisa amandla aqinile, ukumelana nezinyembezi, ukumelana nokuguga, nokusebenza okungangeni kwemvula.

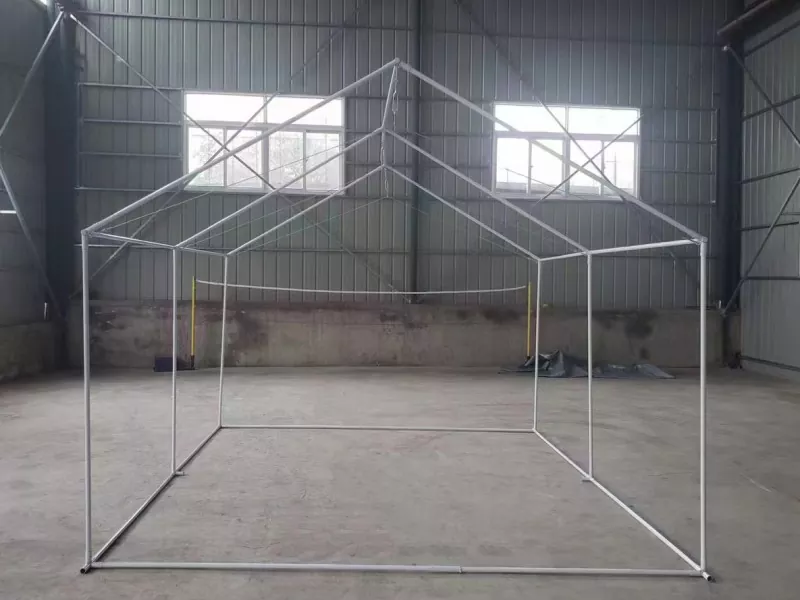

I-Stent: Izigxobo eziyinhloko (isb., izigxobo zomhlaba wonke, ama-uprights) zenziwe ngamapayipi ensimbi ashiselwe anobubanzi obungaba ngu-25mm.
Umhlangano Nokunakekelwa: Kuklanyelwe ukwenza kube lula—abantu abangu-2 bangaqeda umhlangano ngemizuzu eyi-15. Ukunakekela kulula, ikakhulukazi kuhilela ukugcina itende lihlanzekile, ukuhlola amanzi amile ngemva kwemvula, nokomisa ngesikhathi.
Njengomkhiqizi wamatende osizo oluphuthumayo waseShayina, iPengcheng Outdoor inamakhono amaningi okukhiqiza kanye nokuhlinzeka.
Iziqu Zokukhiqiza Nezinto Zokusebenza: Ifakwe uhla lwemishini yokukhiqiza esezingeni eliphezulu, okuhlanganisa imishini yokushisela i-robotic, imishini emikhulu yokulawula izinombolo, kanye nemishini yokuncibilikisa izinombolo. Njengoba indlunkulu yayo iseTangshan kanye namagatsha amane eXi’an, Yishui, Yongqing, naseShenyang, sisungule inethiwekhi yokusebenza ehlanganisa iShaanxi, Shandong, Hebei, Liaoning, nezinye izifundazwe ezweni lonke, siqinisekisa ukukhiqizwa nokuzinza okuzinzile.
Izitifiketi: Imikhiqizo yethu iwine amabhidi amaphrojekthi kahulumeni wokuthola izinto zokusiza ezinhlekeleleni, ethobelana namazinga afanelekile kazwelonke noma emboni (isb., amazinga ochungechunge lwe-MZ/T 011).
